Equipment digital circuit board repair process and experiment (A project from Hunan Province)

Project Time: 2022-05 ~ 2023-12
Research objectives:

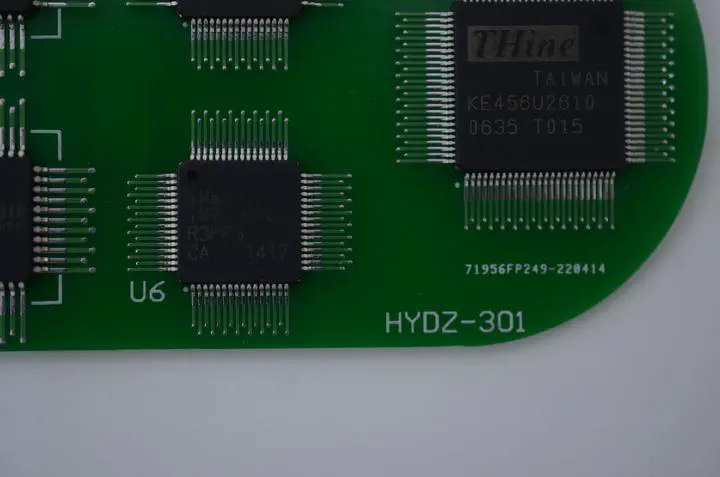

Uniform metal droplet jet 3D printing technology is used to repair faulty circuit boards in this project. Conduct equipment digital circuit board repair experiments based on uniform metal droplet ejection, breakthrough key issues such as solder droplet uniformity and landing point accuracy, and realize board-level repair processes such as large deposition distance, high-density ball grid array packaging and quad flat packaging. In this way, improves the repair level of circuit boards in precision instruments.
